Canon EOS C700 Full-Frame Cinema Camera (Cinema Locking EF-Mount)
Special Financing available at checkout. View more details
Still Have a Questions? Ask Our Experts 855-851-5151
Your questions or feedback are always welcome
Accessories for Canon EOS C700 Full-Frame Cinema Camera (Cinema Locking EF-Mount)
Description

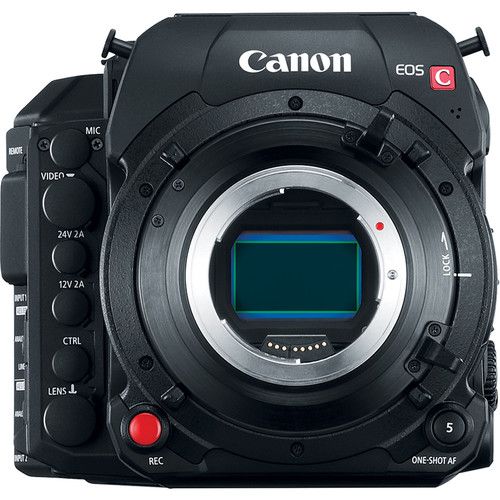

This Canon EOS C700 Full-Frame Cinema Camera features a full-frame sensor that allows you to capture images with up to 5.9K resolution. This version of the EOS C700 FF Digital Cinema Camera comes with Canon's EF lens mount with a positive-locking mechanism, minimizing play found in traditional spring-loaded, bayonet-style mounts. With a physical resolution exceeding that of DCI 4K and a dynamic range of approximately 15 stops, the EOS C700 FF Digital Cinema Camera is ready for today's 4K and HDR productions. The full-frame sensor and triple DIGIC DV 5 image processors enables full-frame capture at 30p and 4K cropped capture at up to 72 fps to the CFast 2.0 card slots using the XF-AVC codec. Both relay and simultaneous recording is possible, and you can even record in ProRes on one CFast card, while simultaneously recording to XF-AVC on another CFast card. Raw recording is also possible in full frame at up to 60 fps, 4K Super35 crop up to 72 fps, and 2K Super16 crop up to 168 fps using an optional clip-on Codex Digital Recorder.

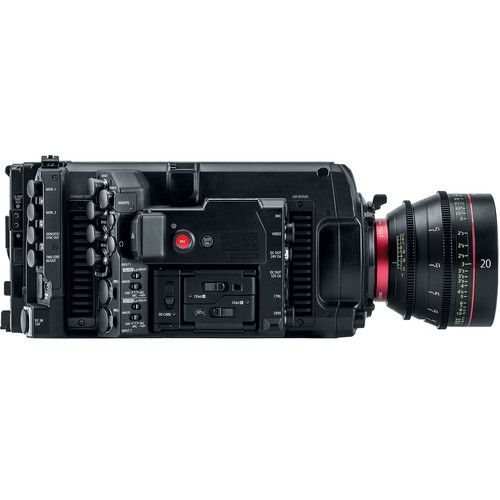

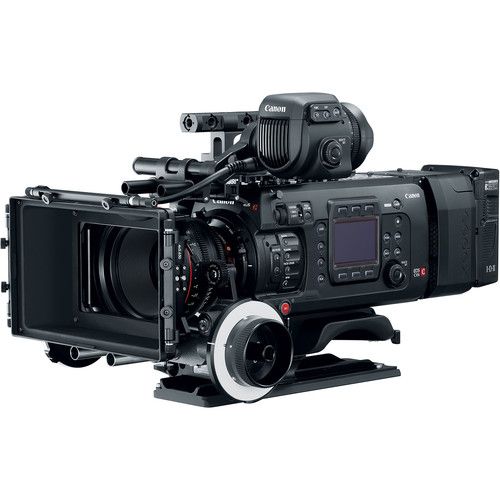

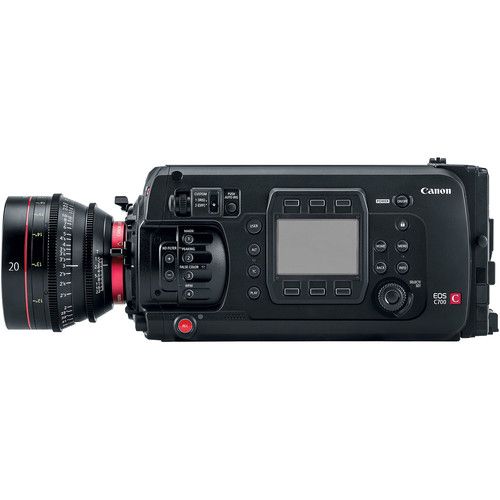

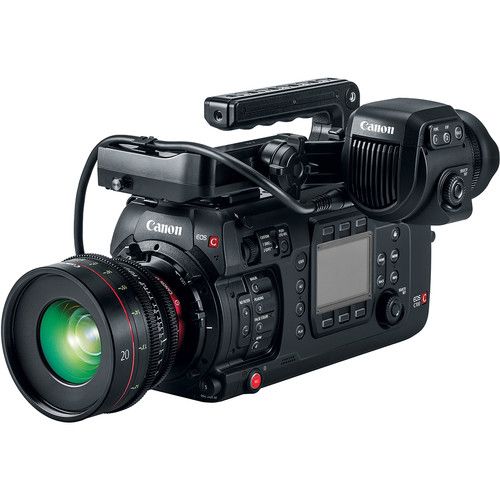

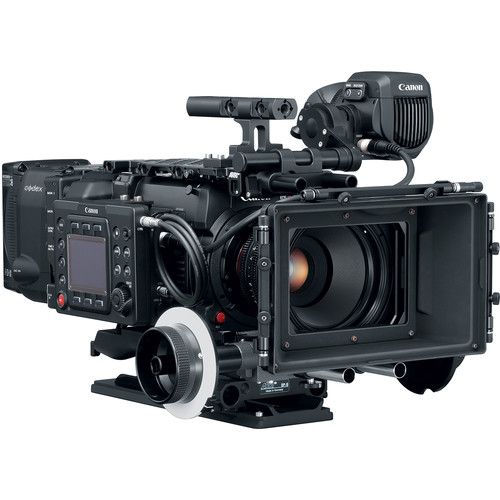

While the EOS C700 FF Digital Cinema Camera is a fairly advanced piece of equipment, Canon has implemented a familiar user interface. Most basic functions can be accessed through the six buttons surrounding the screen. More advanced settings can be found using the simple selection dial and set buttons. I/O options for nearly any application can be found on the camera's side panel. Video, audio, control, and power inputs and outputs are available for implementations ranging from ENG-style run-and-gun to high-budget cinema productions. The camera supports ACES, and features selectable gamma and log shooting modes. While the camera is a production powerhouse all on its own, its modular design lets the user customize the form factor to fit their use case. The rectangular body has enough real estate to be shoulder-mounted for handheld shooting or secured to a dovetail on professional grip equipment with ease.
Specification
Lens Mount | Canon EF Cinema |
Lens Communication | Yes |
Sensor Resolution | Actual: 20.8 Megapixel (6062 x 3432) Effective: 18.69 Megapixel (5952 x 3140) |
Sensor Type | 38.1 x 20.1 mm (Full-Frame) CMOS |
Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
ISO Sensitivity | 160 to 25,600 (Native) 100 to 102,400 (Expanded) |
Shutter Type | Rolling Shutter |
Advertised Dynamic Range | 15 Stops |
Recording Modes | XF-AVC 4:2:2 10-Bit: 4096 x 2160p up to 60 fps 3840 x 2160p up to 60 fps 2048 x 1080p up to 168 fps 1920 x 1080p up to 60 fps 1920 x 1080p at 50/59.94 fps XF-AVC 4:4:4 12-Bit: 2048 x 1080p up to 60 fps 1920 x 1080p up to 60 fps XF-AVC 4:4:4 10-Bit: 1920 x 1080p up to 60 fps XF-AVC 4:2:0 8-Bit: 2048 x 1080p up to 60 fps ProRes 4:2:2 10-Bit: 4096 x 2160p up to 30 fps 3840 x 2160p up to 30 fps 2048 x 1080p up to 168 fps 1920 x 1080p up to 168 fps ProRes 4:4:4 12-Bit: 2048 x 1080p up to 60 fps 1920 x 1080p up to 60 fps |
Variable Frame Rates | Up to 168 fps |
Raw Output | External Recorder: 5952 x 3140 12-Bit 5952 x 2532 12-Bit 4096 x 2160 12-Bit 5952 x 3140 10-Bit 5952 x 2532 10-Bit 4096 x 2160 10-Bit 2048 x 1080 10-Bit |
IP Streaming | MP4: 720 x 480 to 1920 x 1080 at 29.97p, 59.94i (1.5 to 9.0 Mb/s) |
Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0) Single Slot: SD/SDHC/SDXC |
Video Connectors | 2 x BNC Monitor Output 4 x BNC (SDI) Output 1 x HDMI Output |
Audio Connectors | 1 x 1/8" / 3.5 mm Stereo Mic Level Input 2 x 3-Pin XLR Input |
Built-In Microphone Type | Mono |
Other I/O | 1 x RJ45 LAN |
Secondary Display | Side: 3" LCD Status Display |
EVF | Optional, Not Included |
Battery Type | V-Mount |
Power Connectors | 1 x 4-Pin XLR (12 VDC) Input 1 x D-Tap Output |
Accessory Mount | None |
Dimensions | 6.6 x 6.1 x 12.9" / 16.76 x 15.49 x 32.77 cm |
Weight | 7.6 lb / 3.45 kg |
Package Weight | 15.9 lb |
Box Dimensions (LxWxH) | 18.7 x 14.2 x 13.8" |
Product Includes
