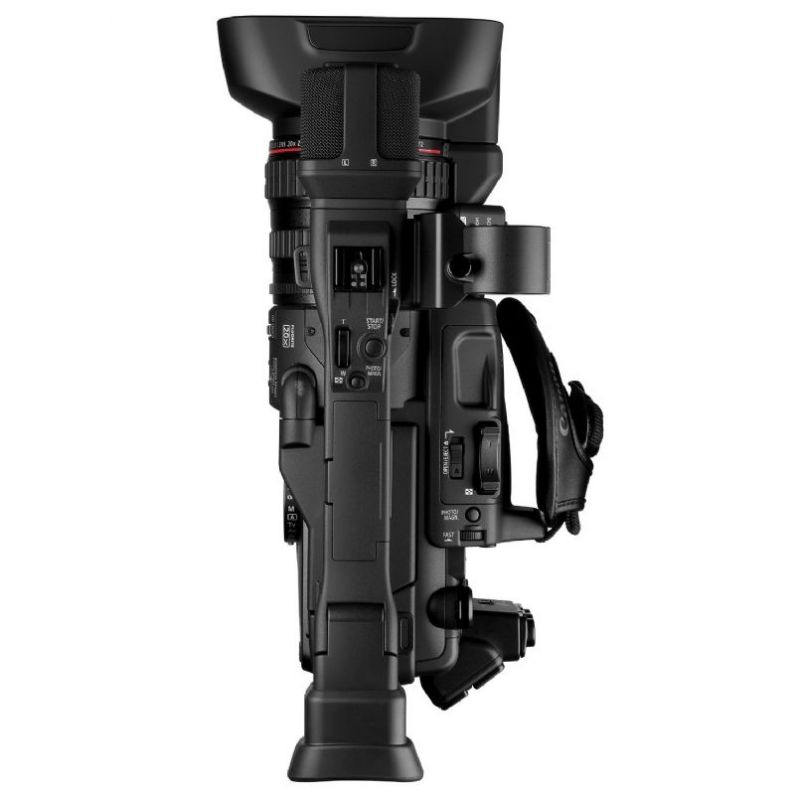

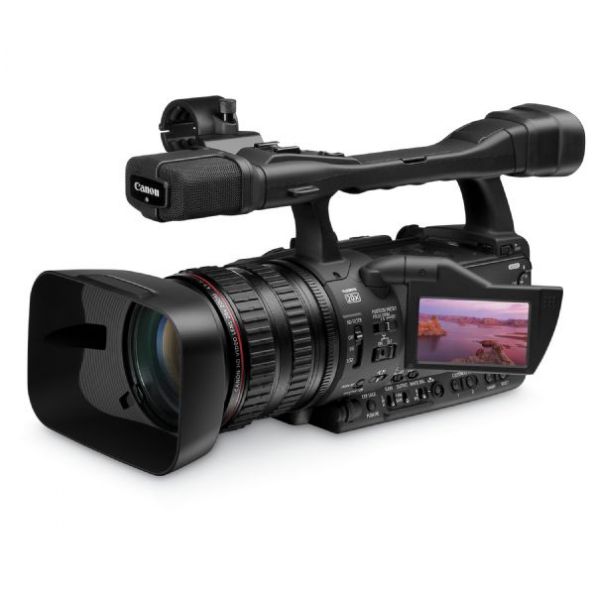

Canon XH-G1S 3CCD High Definition Professional Camcorder
Special Financing available at checkout. View more details
Still Have a Questions? Ask Our Experts 855-851-5151
Your questions or feedback are always welcome
126 Accessories for Canon XH-G1S 3CCD High Definition Professional Camcorder
Description
Specification
Power Supply (rated) | 7.4V DC (battery pack) |
Video Recording system | HDV: HDV1080i; DV: DV specifications Two rotating heads, helical scan azimuth recording, (Consumer VCR SD specifications) |
Audio Recording system | HDV: 2-channel recording MPEG1 Audio Layer II: (Sampling frequency 48 kHz, bit rate 384 kbps) DV: 2-channel recording PCM digital recording: 16 bits (48 kHz), 12 bits (32 kHz, 12 bits selectable) |
Image Sensor | (3) 1/3-inch CCDs |
Total Pixels | Approx. 1.67 Megapixels each x 3 |
Effective Pixels | HD approx. 1.56 Megapixels SD (4:3) approx. 1.17 Megapixels SD (16:9) approx. 1.56 Megapixels |
Tape Format | Video cassettes bearing the MiniDV mark |
Tape Speed | HDV/DV: SP mode 18.81mm/second DV: LP mode 12.56 mm/second |
Maximum recording time | HDV/DV: SP mode 80 min. DV:LP; 120 min. |
Lens | Canon 20x HD L Series Zoom, f=4.5-90mm, f/1.6-3.5 |
Focusing System | Instant AF system TTL-video signal sensing system autofocus. Manual focusing possible. |
Minimum Focusing Distance | 20mm (wide macro), 1m (entire zoom range) |
Frame Rate | NTSC : 60i, 24F, 30F PAL : 50i, 25F |
Minimum Illumination | NTSC: 6 lux (Shutter speed 1/60, Gain 18 dB) PAL: 5 lux (Shutter speed 1/50, Gain 18 dB) Manual mode (when Gain 18 dB, f/1.6, 60i/50i are selected) NTSC: 0.4 lux (Shutter speed 1/4), PAL: 0.3 lux (Shutter speed 1/3) (when 60i/50i is selected) |
Image Stabilization | SuperRange Optical (Lens Shift) |
Filter Diameter | 72mm |
Viewfinder | .57-inch widescreen, approx. 269,000 pixels |
LCD Screen | 2.8-inch widescreen, approx. 207,000 pixels |
Microphone | High-performance stereo electric condenser microphone |
Recording Media(photos) | SD/SDHC , MMC |

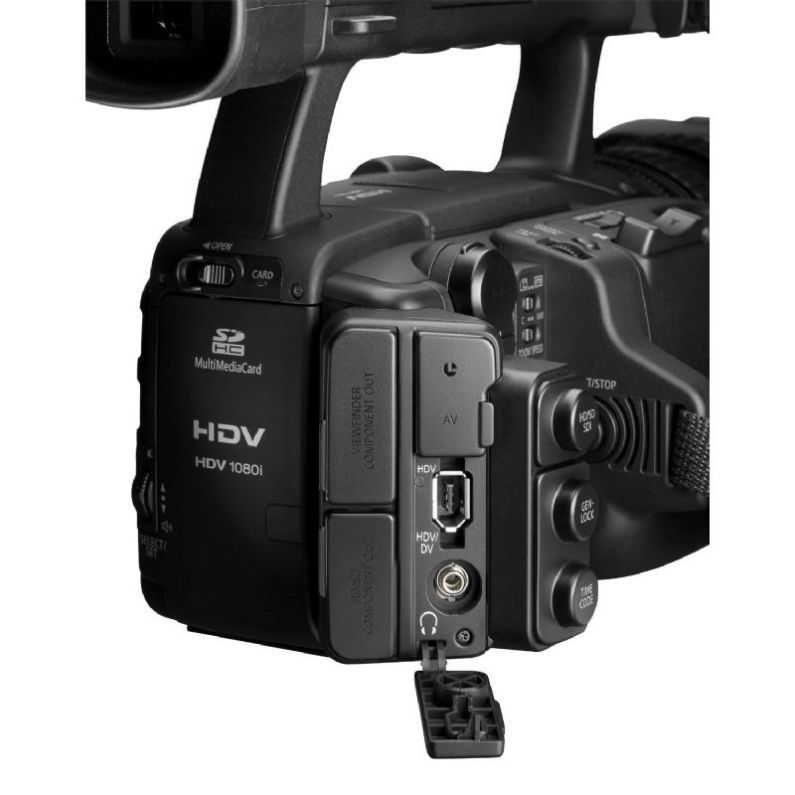

DV Terminal | HDV/DV 6-pin connector (IEEE1394 compatible); both input/output |
Video Terminal | (a) Also serves as AV mini-terminal; both input/output (b) Also serves as BNC connector; output |
Output Levels | -12 dBV (with 47-kohm load, 1 Vrms output level setting and -12 dB full scale) |
Audio Terminal | XLR 3-pin jack (2 systems); Switchable between MIC/LINE |
Microphone Terminal | 3.5mm stereo mini-jack |
Operating Temperature range | 32 – 104° F (0 – 40° C) |
Dimensions | 6.4 x 7.6 x 15.5 in. (163 x 192 x 394mm) |
Weight (not including lens hood and eyecup) | XH G1S:4.9 lbs. (2200 g) / XH A1S:4.7 lbs. (2135 g) |
Product Includes
