Sony FX3 Full-Frame Cinema Camera
Still Have a Questions? Ask Our Experts 855-851-5151
Your questions or feedback are always welcome
Accessories for Sony FX3 Full-Frame Cinema Camera
Description
Optimized for movie making, the FX3 features a zoom lever located on the top of the grip which not only controls compatible powered zoom lenses, but also allows Clear Image Zoom to be used with unpowered zoom and prime lenses with less image degradation.
Real-time Eye AF to detect eye data and track the subject’s eye with unprecedented precision. The superior real-time data processing capability of the new BIONZ XR image processing engine ensures accurate, reliable detection even when faces are looking away at extreme angles.
FX3 allows users to easily create a cinematic look without post-production using S-Cinetone picture profile. Inspired by the color science of Sony VENICE camera, S-Cinetone delivers natural mid-tones that are essential to cinematic expression.
FX3 combines a fan for active cooling in addition to the unique camera-wide passive heat dissipation structure resulting in uninterrupted 4K 60p recording
The FX3 inherits AF performance from Sony’s FX9 and FX6 Cinema Line cameras, incorporating the highly acclaimed Fast Hybrid AF for movie shooting in all modes, including 4K 120p.
Every aspect of this camera, from hardware such as controls, tally lamp, custom buttons, and a vari-angle LCD monitor, to software-based features such as touch-responsive menus and parameters, have been designed to give creators what they need in real-world applications.
The Flexible Exposure Mode allows the Auto and Manual modes for iris (aperture), shutter speed, and ISO to be set independently.
4K resolution at up to 120 frames per second delivers extraordinarily smooth slow-motion imagery. In addition to supporting 10-bit 4:2:2 recording, this feature can be used with efficient Long GOP compression or high-quality All-Intra compression.
To answer the increasing demand for RAW recording, the FX3 is capable of 16-bit RAW output up to 4K 60p to an external device via full-size HDMI Type A, for applications that demand the highest quality and post-production flexibility provided by RAW output.
The FX3 provides HLG high-dynamic-range picture profile that supports the wide-gamut BT.2020 color space for true-to-life imagery with detailed shadows and highlights, with no need for color grading.
Even though the FX3 is optimized for cinematography, it still has the capabilities to capture 12.1MP stills in JPEG, RAW and HEIF at up to 10fps with continuous autofocus and auto-exposure.
The FX3 features a 10.2MP Full-frame Backside-illuminated Exmor R CMOS sensor that delivers sensitivity, speed and superior movie quality. The sensor delivers up to 15+ stops of dynamic range and drastically reduced noise for clean images.
The FX3 features the BIONZ XR system architecture, that makes it possible to deliver high sensitivity and natural gradations, low noise, as well as more precise AF plus the ability to process the large amounts of data required for 4K recording.
As the most compact model in the Cinema Line, the FX3 is not only the smallest and lightest. It weighs just 1.58 lbs. (715 g), including battery and memory cards, and the body is only 5.11” x 3.33” x 3.06” (129.7 x 84.5 x 77.8mm) WxHxD.
The FX3 offer several recording options to meet the needs of different content creators, including; 10-bit 4:2:2 XAVC S and XAVC S-I formats in either 4K or FHD as well as 10-bit 4:2:2 XAVC HS, in 4K only.
In many cinema workflows, the ability to match the color of footage from multiple cameras is essential. The FX3 includes S-Log2 and S-Log3 gamma curves, the latter emphasizing shadow to mid-tone gradations.
Three recording lamps are provided so that both the operator and talent can easily confirm recording. The Rec. button on the top illuminates when recording is in progress as well as a front and back tally lamp of the camera.
Two identical card slots make sure redundant recording or extended record times with additional media options. Both Slot 1 and Slot 2 media slots support UHS-I and UHS-II SDXC/SDHC cards
The FX3 is designed to eliminate the need for a camera cage, including six standard ¼”-20 UNC threaded mounting points to easily and securely attach compatible accessories such as external monitors, recorders, wireless microphones, or other add-ons.

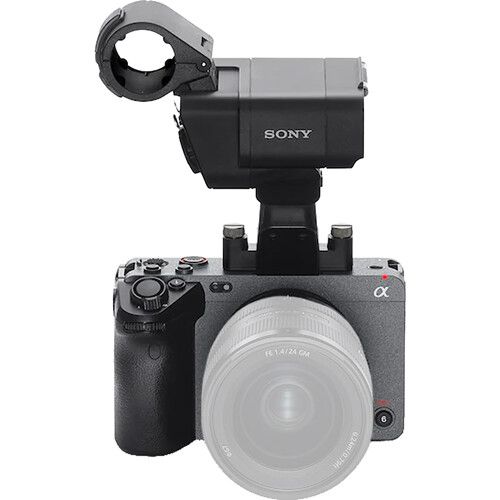

The XLR module on the handle which includes a 3.5mm mic jack takes care of the A/D conversion and DSP and transfers up to 4 channels digital audio data directly to the camera for outstanding audio quality.
The FX3 can transfer movie and still image files to a specified remote FTP server via wireless LAN, high-speed wired LAN via an optional USB to Ethernet adapter, or a USB-tethered smartphone connection to a cellular network.
Specification
| Lens Mount | Sony E |
| Lens Communication | Yes, with Autofocus Support |
| Sensor Resolution | Actual: 12.1 Megapixel Effective: 10.2 Megapixel |
| Sensor Type | 35.6 x 23.8 mm (Full-Frame) CMOS |
| Image Stabilization | Sensor-Shift, 5-Axis |
| Built-In ND Filter | None |
| Internal Filter Holder | No |
| Capture Type | Stills & Video |
| Shutter Type | Electronic Shutter, Mechanical Focal Plane Shutter |
| Shutter Speed | 1/8000 to 1/4 Second in Movie Mode 1/8000 to 1/60 Second in Auto Mode 1/8000 to 30 Seconds in Manual Mode |
| Bulb/Time Mode | Bulb Mode |
| ISO Sensitivity | Video 80 to 102,400 in Manual Mode (Extended: 80 to 409,600) |
| Advertised Dynamic Range | 15 Stops |
| Exposure Modes | Aperture Priority, Auto, Manual, Program, Shutter Priority |
| Metering Range | -3 to 20 EV |
| White Balance | 2500 to 9900K Presets: Auto, Cloudy, Custom, Daylight, Flash, Fluorescent, Incandescent, Shade, Underwater |
| Continuous Shooting | Up to 10 fps |
| Interval Recording | No |
| Recording Modes | XAVC HS UHD 4K (3840 x 2160) at 23.98p/25p/29.97p [30 to 100 Mb/s] UHD 4K (3840 x 2160) at 50p/59.94p [45 to 200 Mb/s] UHD 4K (3840 x 2160) at 100p/119.88p [200 to 280 Mb/s] XAVC S UHD 4K (3840 x 2160) at 23.98p/25p/29.97p [60 to 140 Mb/s] UHD 4K (3840 x 2160) at 50p/59.94p [150 to 200 Mb/s] Full HD (1920 x 1080) at 23.98p/25p/29.97p/50p/59.94p [16 to 50 Mb/s] Full HD (1920 x 1080) at 100p/119.88p [60 to 100 Mb/s] XAVC S-I UHD 4K (3840 x 2160) at 23.98p/25p/29.97p [240 to 300 Mb/s] UHD 4K (3840 x 2160) at 50p/59.94p [500 to 600 Mb/s] Full HD (1920 x 1080) at 23.98p/25p/29.97p [60 to 111 Mb/s] Full HD (1920 x 1080) at 50p/59.94p [185 to 222 Mb/s] Full HD (1920 x 1080) at 100p/119.88p [200 to 280 Mb/s] XAVC Proxy Full HD (1920 x 1080) [9 to 16 Mb/s] HD (1280 x 720) [6 Mb/s] |
| Sensor Crop Modes | Super35 / APS-C |
| Variable Frame Rates | UHD: 1 Up to 119.88 fps 1080p (Windowed): 1 Up to 240 fps |
| Gamma Curve | HDR-HLG, S Cinetone, Sony S-Log 2, Sony S-Log 3, Standard |
| Recording Limit | Unlimited |
| Built-In Microphone Type | Stereo |
| Audio Recording | 4-Channel 24-Bit LPCM Audio 2-Channel 24-Bit LPCM Audio |
| Raw Output | HDMI In Raw Mode: 4264 x 2408 16-Bit at 24.00/25/50/60 fps 3840 x 2160 16-Bit at 24.00/25/50/60 fps 1920 x 1080 16-Bit at 24.00/25/50/60 fps |
| External Recording Modes | 4:2:2 10-Bit via HDMI |
| IP Streaming | Yes |
| Image Sizes | 16:9 JPEG / Raw 12 MP 5.1 MP 3 MP 1.3 MP 11 MP 4.6 MP 2.7 MP 1.1 MP 10 MP 4.3 MP 2.6 MP 8 MP 3.4 MP 2 MP 0.8 MP |
| Aspect Ratio | 1:1, 3:2, 4:3, 16:9 |
| Image File Format | HEIF, JPEG, Raw |
| Media/Memory Card Slot | Dual Slot: CFexpress Type A Dual Slot: SD/SDHC/SDXC |
| Video I/O | 1 x HDMI Output |
| Audio I/O | 2 x XLR / 1/4" TRS Combo Mic/Line Input on Included Handle 1 x 1/8" / 3.5 mm TRS Stereo Microphone Input on Camera Body 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O | 1 x USB Type-C Input |
| Other I/O | 1 x USB Type-C (Ethernet, USB 3.2 / 3.1 Gen 1) (Shared with Power Input) 1 x Sony Multi/USB Micro-B |
| Wireless | 2.4 / 5 GHz Wi-Fi 5 (802.11ac), Bluetooth, NFC |
| Global Positioning (GPS, GLONASS, etc.) | None |
| Size | 3" |
| Resolution | 1,440,000 Dot |
| Display Type | Articulating Touchscreen LCD |
| Type | Optional, Not Included |
| Focus Type | Auto and Manual Focus |
| Focus Mode | Automatic, Continuous-Servo AF, Manual Focus |
| Autofocus Points | Phase Detection: 627 |
| Built-In Flash | No |
| Maximum Sync Speed | 1/125 Second |
| Dedicated Flash System | TTL |
| External Flash Connection | Intelligent Hot Shoe |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Battery Type | Sony Z-Series |
| Power Consumption | ≤7.3 W |
| Tripod Mounting Thread | 1/4"-20 Female |
| Accessory Mount | 1 x Intelligent Hot Shoe 5 x 1/4"-20 Female on Camera Body 3 x 1/4"-20 Female on Included Handle |
| Material of Construction | Magnesium Alloy |
| Dimensions (W x H x D) | 5.1 x 3.3 x 3.1" / 129.7 x 84.5 x 77.8 mm |
| Weight | 1.4 lb / 640 g (Body Only) 1.6 lb / 715 g (With Battery, Recording Media) |
| Package Weight | 3.795 lb |
| Box Dimensions (LxWxH) | 9.6 x 9.1 x 5.8" |
Product Includes
